Basic Structure of IPv4 - Subnetting

IPv4, in short, is an addressing system that allows devices connected to the internet (computers, phones, etc.) to recognize each other. Let's now examine the structure of this addressing.

• An IPv4 address is a 32-bit number consisting of 4 sections (octets) of 8 bits each. (8 bits = 1 byte)
• For human readability, these bits are converted into decimal numbers from 0-255, separated by dots. This is called Dotted-Decimal Notation.
  • Example: 11000000.10101000.00000001.00000001 (binary - what computers understand) = 192.168.1.1 (decimal - what we understand)
• We perform this conversion using the following logic.
  • IP Address: 192.168.1.1

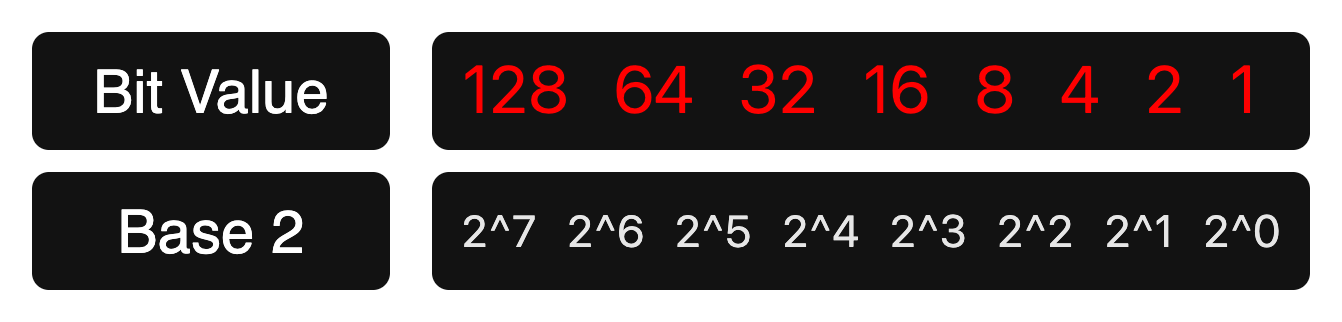

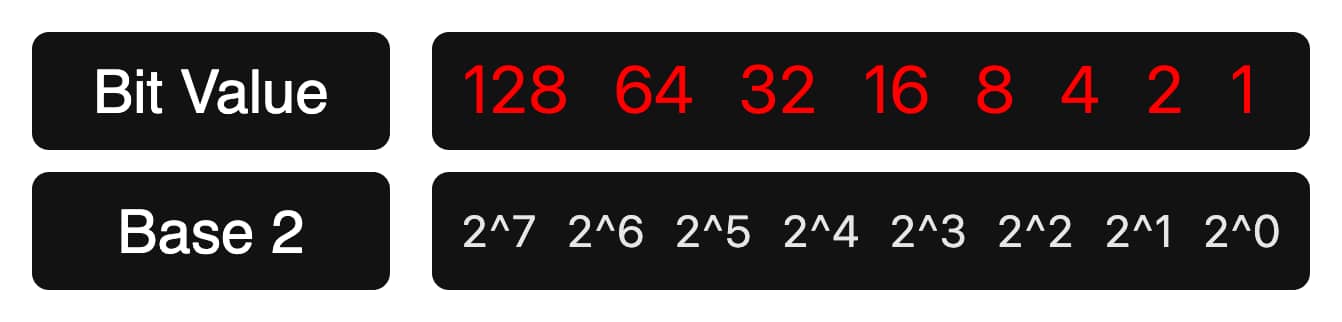

  • Method: Each bit represents a power of 2. The decimal equivalents of the 8 bits within an octet are as follows:




  To get the number we have, we find which values in the table we need to "use". We write 1 under each value we use and 0 under those we don't.
  • 128(1) - 64(1) - 32(0) - 16(0) - 8(0) - 4(0) - 2(0) - 1(0) which means 128+64=192
  • 128(1) - 64(0) - 32(1) - 16(0) - 8(1) - 4(0) - 2(0) - 1(0) which means 128+32+8=168

Network and Host ID

Every IPv4 address consists of two fundamental parts. A Network Mask is used to separate these parts.

• Network ID: Specifies which network the device is on. It's like the street name. The 1s in the network mask represent this part.
• Host ID: Identifies a specific device on that network. It's like the house number. The 0s in the network mask represent this part.

Example:

• IP Address: 192.168.1.10
• Network Mask: 255.255.255.0 , The binary equivalent of this mask is: 11111111.11111111.11111111.00000000
• Analysis: This mask indicates that the first three octets (the first 24 bits) are the Network ID, and the last octet (the last 8 bits) is the Host ID.
  • Network ID: 192.168.1.0
  • Host ID: 10

CIDR Notation

This provides a more flexible way to express the network mask we just mentioned by appending a / (slash) and the number of bits representing the network ID to the end of the IP address.

• 192.168.1.10/24 → Indicates that the first 24 bits are the network ID (i.e., the 255.255.255.0 mask).
• 10.50.0.0/8 → Indicates that the first 8 bits are the network ID (i.e., the 255.0.0.0 mask).

Special-Purpose IP Addresses

Certain IP addresses and ranges are reserved for special tasks and cannot be assigned to a normal device.

• Network Address: Defines the network itself. All bits in the host ID portion are 0 (e.g., 192.168.1.0/24).
• Broadcast Address: Used to send data to all devices on a network. All bits in the host ID portion are 1 (e.g., 192.168.1.255/24).
• Local Loopback: The address 127.0.0.1 is used for a device to communicate with itself. It is generally used for testing purposes.
• Private IP Ranges: These are addresses that cannot be routed on the public internet and are only for use on local networks (home, office, etc.).
  • 10.0.0.0 - 10.255.255.255 (10.0.0.0/8)
  • 172.16.0.0 - 172.31.255.255 (172.16.0.0/12)
  • 192.168.0.0 - 192.168.255.255 (192.168.0.0/16)

Subnetting

This is the process of dividing a large IP network into smaller, more efficient, and manageable Subnets. Let's walk through an example.

Step 1: Calculating Basic Information

• IP Address: 192.168.12.140/26
• CIDR: /26
• Network Mask: 255.255.255.192
• Binary Mask: 11111111.11111111.11111111.11000000

Now, let's find the fundamental addresses of the subnet with this information:

1. Network Address:
   • Found by setting all bits in the Host Portion of the IP address to 0.
   • IP (Binary): 11000000.10101000.00001100.10001100
   • Mask (Binary): 11111111.11111111.11111111.11000000
   • Result (Binary): 11000000.10101000.00001100.10000000
   • Result (Decimal): 192.168.12.128
2. Broadcast Address:
   • Found by setting all bits in the Host Portion of the IP address to 1.
   • Result (Binary): 11000000.10101000.00001100.10111111
   • Result (Decimal): 192.168.12.191
3. Usable IP Range:
   • The Network and Broadcast addresses cannot be assigned to devices. All addresses in between are usable.
   • Result: 192.168.12.129 - 192.168.12.190
4. Number of Usable Hosts:
   • A /26 mask leaves 32 - 26 = 6 bits for the host portion. The total number of IPs is 2^6 = 64.
   • Result: 64 - 2 (Network and Broadcast Address) = 62 usable IPs.

Step 2: Dividing the Network into Smaller Subnets

Let's divide the existing 192.168.12.128/26 network into 4 equal parts.

1. Finding the Required Number of Bits: To create 4 subnets, since 2^2 = 4, we need to "borrow" 2 more bits for the network mask.
   • The rule of thumb is: If you borrow n bits, you create 2ⁿ new subnets.
   Word Wrap

   Exponent	Value
   2 ^0 - 00000000 - Full Network	= 1
   2 ^1 - 10000000 - 2 Networks	= 2
   2 ^2 - 11000000 - 4 Networks	= 4
   2 ^3 - 11100000	= 8
   2 ^4 - ....	= 16
   2 ^5	= 32
   2 ^6	= 64
   2 ^7	= 128
   2 ^8	= 256

2. Determining the New Subnet Mask: Our current mask was /26. We find the new mask by adding 2 more bits.
   • /26 + 2 bits = /28 (or 255.255.255.240)
3. Calculating the New Subnets: When our large block of 64 addresses is divided by 4, each new subnet will have 16 addresses (64 / 4 = 16). Starting from 192.168.12.128, we proceed in increments of 16:

• 1st Subnet: 192.168.12.128/28 (Network: .128, Broadcast: .143, Usable: .129 - .142)
• 2nd Subnet: 192.168.12.144/28 (Network: .144, Broadcast: .159, Usable: .145 - .158)
• 3rd Subnet: 192.168.12.160/28 (Network: .160, Broadcast: .175, Usable: .161 - .174)
• 4th Subnet: 192.168.12.176/28 (Network: .176, Broadcast: .191, Usable: .177 - .190)

Quick Subnet Calculation Method

More practical methods can be used instead of complex binary calculations.

1. Finding the Relevant Octet: Determine which octet you are working on by looking at the CIDR mask.
   • /8 - /15 → 2nd octet
   • /16 - /23 → 3rd octet
   • /24 - /30 → 4th octet

   By remembering these four numbers, we will determine which octet of the IP Address can change.
   • For example, given the network address 192.168.1.1/25, it is immediately clear that 192.168.2.4 is not on the same network because a /25 subnet means only the fourth octet can change.
2. Finding the Block Sizes: Find the increment interval for subnets in the relevant octet.
   • Formula: 256 - (Mask Value in the Relevant Octet)
   • Example ( for /26): Mask is 255.255.255.192. The value of the relevant octet (4th) is 192.
     • Block Size: 256 - 192 = 64. This indicates that the network addresses will increment by 64 (0, 64, 128, 192).
   • Example (for /28): Mask is 255.255.255.240. The value of the relevant octet (4th) is 240.
     • Block Size: 256 - 240 = 16. This indicates that the network addresses will increment by 16 (0, 16, 32, ... 128, 144, 160...).

Thanks for reading our article, you can share your thoughts in the comments. Have a great day...
